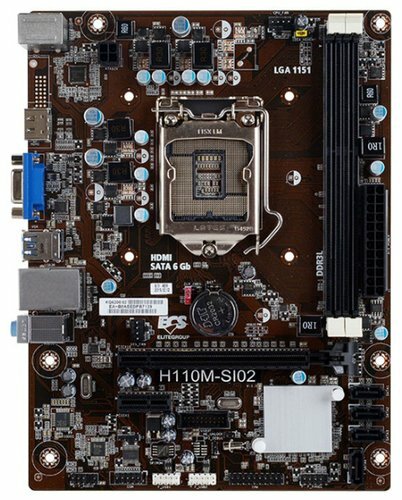

Mainboard H110M-SI02 (DDR3) - ECS
Rp 900.000
Hubungi (0361) 467603 untuk informasi lebih lanjut
180619115930
Pre Order
1.0 Kg
1.0 Kg
Untuk informasi harga dan stok dapat menghubungi 0361 - 4712678
Information
CPU Supports 7th gen Intel®Core™ family/ Pentium / Celeron series processors for LGA 1151 socket
  Supports 6th gen Intel®Core™ family/ Pentium / Celeron series processors for LGA 1151 socket
  Solid Capacitor for CPU side
  Please refer to CPU support list for details
Chipset Intel®H110 Express Chipset
Graphics Supports DirectX®12
Memory Dual-channel DDR3L Memory architecture
  Supports DDR3L 1600 non-ECC, Un-buffered SDRAM Memory
  2 X 240-pin DDR3L DIMM socket
  Support up to 32 GB*
  Note:Please refer to the latest Memory support list for details
Expansion Slot 1 X PCI Express X16 Gen 3.0 slot(s)
  1 X PCI Express X 1 Gen 2.0 slot(s)
Storage Support by H110 Express Chipset (4 X Serial ATAIII 6Gb/s)
Audio 6-Channel HD audio CODEC
  Realtek ALC662 6-channel High Definition audio CODEC
LAN Realtek 8111H Gigabit Fast Ethernet Controller
  Wake-On-LAN
USB Support by H110 Express Chipset
  4 X USB3.0 port(s) up to 5Gb/s (Back Panel 2 port(s))
  6 X USB2.0 port(s) Up to 480 Mb/s (Back Panel 2 port(s))
Rear Panel I/O 1 X PS/2 Keyboard & PS/2 mouse connectors
  1 X Audio port (Line Out/Line In/Mic In)
  1 X RJ-45 port
  1 X HDMI port(s)
  1 X D-Sub (VGA) port(s)
  2 X USB3.0 port(s)
  2 X USB2.0 port(s)
Connectors & Headers 1 X 24-pin ATX Power Supply connector
  1 X 4-pin 12V Power connector
  1 X 4-pin CPU_FAN connector
  1 X 4-pin SYS_FAN connector
  1 X Front panel audio header
  1 X USB 3.0 header (Support additional 2 USB ports)
  2 X USB 2.0 header (Support additional 4 USB ports)
  4 X SATA III 6Gb/s connector(s)
  1 X CLR_CMOS header
  1 X Serial port header (COM)
  1 X TPM header
  1 X IDEA Memory jumper
System BIOS AMI BIOS with 64 MB SPI Flash ROM
  ACPI & DMI
  Dual Display
  Support GUI UEFI BIOS
  Multi-Language BIOS
Form Factor mATX Form Factor
  225mm x 170mm
OS Support Windows 7 32-bit
  Windows 7 64-bit
  Windows 8.1 64-bit
  Windows 10 64-bit
  * Intel 7thGeneration CPUs support Windows 10 64bit only
Certifications CE/FCC Certification
  ErP/EuP Certification
  WHQL Certification
  WHCK Certification
Bundled Software ECS Intelligent EZ Utility : eBLU, eDLU, eSF
